Ningbo Tianan (Group) Co.,Ltd.
Home ProductsCompact Transformer Substation

Compact Transformer Substation DBW1 - 12 Buried Type Substation With AC 6 ~ 10kV , 50 ~ 500kVA

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

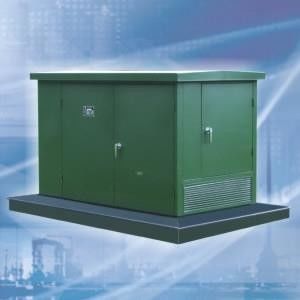

Compact Transformer Substation DBW1 - 12 Buried Type Substation With AC 6 ~ 10kV , 50 ~ 500kVA

Compact Transformer Substation DBW1 - 12 Buried Type Substation With AC 6 ~ 10kV ,  50 ~ 500kVA
Compact Transformer Substation DBW1 - 12 Buried Type Substation With AC 6 ~ 10kV ,  50 ~ 500kVA

Large Image :  Compact Transformer Substation DBW1 - 12 Buried Type Substation With AC 6 ~ 10kV , 50 ~ 500kVA

Product Details:
Place of Origin: China
Brand Name: Tianan Electric
Certification: CCC
Model Number: DBW1-12
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Pending
Packaging Details: Nude
Delivery Time: 50work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Detailed Product Description
Rated Voltage:: 0.4kv~12kv Rated Current: 630A~1000A
Transformer Capacity: 50~500KVA Rated Frequency: 50HZ
High Light:

oil immersed distribution transformer

,

packaged transformer substation



DBW1-12 Buried Type Substation AC 6~10kV 50~500kVA No Noise



a. Rated Voltage: HV Side:12kV, LV Side: 0.4kV.

b. Rated Current: HV Side: 630A, LV Side: 1000A.

c. Transformer Capacity: 50~500kVA.



1. DBW1 Series Buried Type Substation is the newly researched and developed. It fills the blank of China, and be suitable for new pattern box-type substation of city network transformation and construction.

2. DBW1 Series Buried Type Substation is the independent complete transformation and distribution device of AC 6~10kV network with 50Hz of rated frequency and 0~500kVA of rated capacity. It can be suitable for scenic spots and historical interests, residential zone as city public and street light transformer, which can save large of city areas. Especially the ground part with low height and small floor place is suitable for locating at sidewalk or the side of road because it has no interruption for the view and no affects for the scenery.

3. DBW1 Series Buried Type Substation is not only useful for ring network distribution system, but also as a substation of the terminal of radial power grid.



The products have small area, low over ground height, no noise, high power distribution reliability, and it is fitted with distribution network automation terminal equipment FTU and automatic drainage and exhaust equipment.
