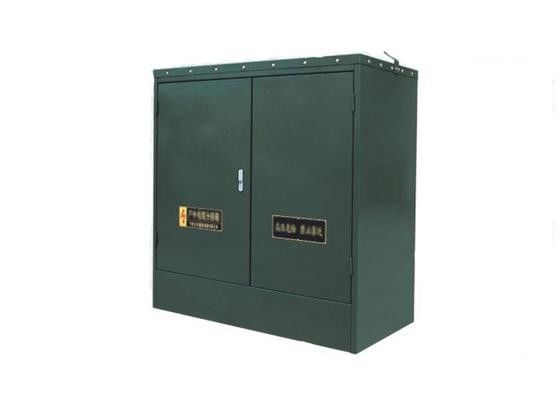

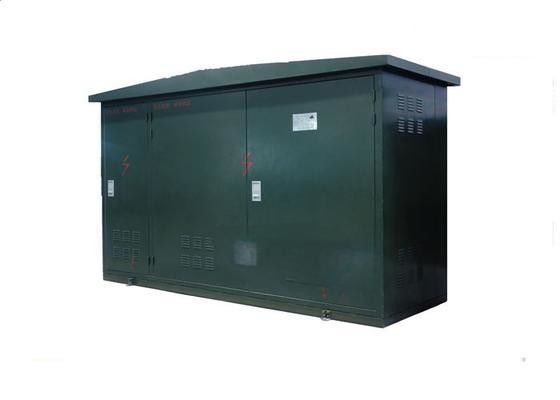

Outdoor Cable Branch Box Metal Enclosed Green Color Connect Distribution Cabinet

China Outdoor Cable Branch Box Metal Enclosed Green Color Connect Distribution Cabinet supplier
Outdoor Cable Branch Box Metal Enclosed Green Color Connect Distribution Cabinet supplier Outdoor Cable Branch Box Metal Enclosed Green Color Connect Distribution Cabinet supplier Outdoor Cable Branch Box Metal Enclosed Green Color Connect Distribution Cabinet supplier

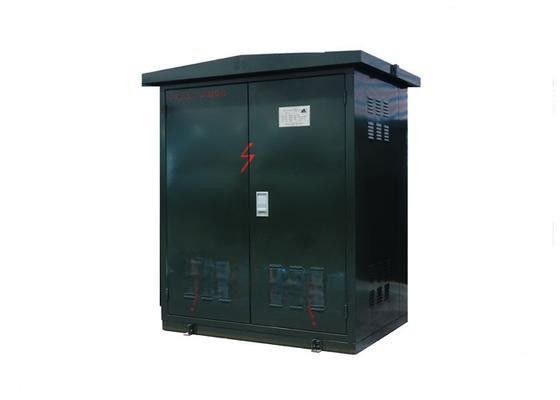

Large Image :  Outdoor Cable Branch Box Metal Enclosed Green Color Connect Distribution Cabinet

Product Details:

Place of Origin: CHINA
Brand Name: TIANAN Electric
Certification: ISO9001:2000, VDE, CCC
Model Number: DFT6-12

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Pending
Packaging Details: Nude
Delivery Time: 45 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 2000sets per year
Contact Now
Detailed Product Description
Rated Voltage: 12KV Ac Metal-enclosed Electrica: Green
Size: 3 Uint Rated Current: 630A

Ac Metal-enclosed Outdoor Cable branch box , Connection distribution cabinet

Overview

DFT6-12/24 series  as the electric energy accepts and distributing. The outdoor ring main unit is the transfer station that the cable conveyed the electric energy, used in outdoor with the cable circuit to connect and breakout, branch and continues or changes. It features of simple connection method, convenience, flexible, full insulation and omniseal structure, waterproof, corrosion resistance,antipollution, maintenance free and safety.

Service condition
A. Altitude 1000m (above sea level);
B. Ambient temperature: -25ºC~+40ºC;
C. Wind speed 34m/s
D. The spot should have no regularly exquisite shake.



Main technical data
Main parameter of FN26-12/24 S
F6 load switch

Item Unit Parameter Parameter
Rated voltage kV 12 24
Rated current A 630 630
Rated short time withstand current kA/s 25/2 25/2
Rated peak withstand current kA 63 63
Rated short circuit making current kA/times 50/2 63/2
1 min power frequency withstand voltage kV 42 65
Lightning impulse withstand voltage kV 75 125
Mechanical life Times 10000 10000
SF6 gas pressure(surface pressure in 20ºC) Mpa 0.04 0.04
Yearly gas leakage rate   1% 1%


Main technical parameter of cable connector

Item Unit Parameter Parameter
Rated voltage kV 12 24
Rated current A 630 and below 630 and below
Cross section of cable mm2 25~400 35~400
Resistance in connection point μΩ 40 45
Partial discharge pC/kV 10/13 10/21.5
Rated short time withstand current kA/s 20/3 25/2
Rated peak withstand current kA 50 63
1 min power frequency withstand voltage kV 42 65
Lightning impulse withstand voltage kV 75 125
