Prefabricated Pv Power Generation 40.5kv 35kv With Channel / Angle Steel Frame

Good quality Mobile Transformer Substation for sales
Good quality Mobile Transformer Substation for sales
I'm Online Chat Now

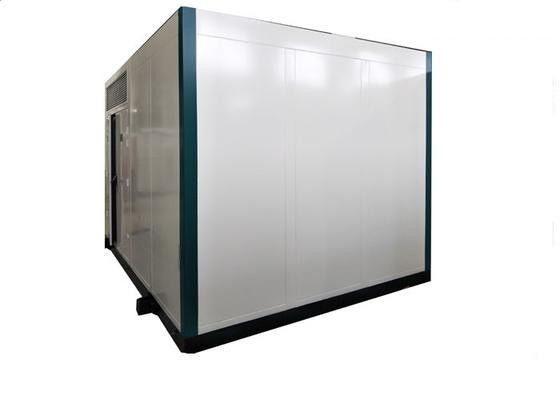

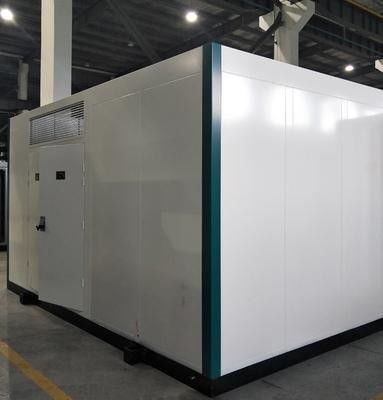

Prefabricated Pv Power Generation 40.5kv 35kv With Channel / Angle Steel Frame

China Prefabricated Pv Power Generation 40.5kv 35kv With Channel / Angle Steel Frame supplier
Prefabricated Pv Power Generation 40.5kv 35kv With Channel / Angle Steel Frame supplier Prefabricated Pv Power Generation 40.5kv 35kv With Channel / Angle Steel Frame supplier Prefabricated Pv Power Generation 40.5kv 35kv With Channel / Angle Steel Frame supplier

Large Image :  Prefabricated Pv Power Generation 40.5kv 35kv With Channel / Angle Steel Frame

Product Details:

Place of Origin: CHINA
Brand Name: TIANAN Electric
Certification: GB17467-2010, IEC62271
Model Number: YBT13(ZBW)

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Pending
Packaging Details: Nude
Delivery Time: 60 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 2000 Sets Per Year
Contact Now
Detailed Product Description
Rated High Voltage: 40.5KV Rated Low Voltage: 0.54V
Rated Capacity: 1000KVA Frame: Channel Steel , Angle Steel
Transformer: Oil-immersed Transformer Rated Current: 1600~3300

40.5KV 35KV PV Power Generation , Prefbricated Special substation

Overview
YBT13 Series PV Special Substation is in order to meet the demand of photovoltaic generation, which has novel appearance, compact structure, reliable performance, easy maintenance, etc.
Service condition:
1. Altitude: ≤ 3000m (above sea level)
2. Ambient temperature: Max. 40C Min. -25C
>>Max. Monthly average temperature: ≤ 35C
>>Max. Yearly average temperature: ≤ 25C
3. Relative humidity: Daily average value≤ 95%, monthly average value≤ 90%
4. Max. Daily difference in temperature: 25C
5. Sunlight intensity: 0.1W/CM2 (wind speed 0.5M/S);
6. Outdoor wind speed: ≤ 35m/s;
7. Pollution grade: Grade III;
8. Rain proof grade: Grade 3;
9. The gradient on installation spot shall be not more than 3° ;
10. Ability of anti-earthquake: Horizontal acceleration of ground surface is 0.2g
Vertical acceleration of ground surface is 0.1g;
11. Installation spot: The spot should has no fire/explosion danger/serious pollution/chemical
corrosion
and exquisite shake.
****Customer should negotiate with manufacturer if the service condition is different from above
Parameters:

Rated Voltage   40.5 kV
Rated Frequency Hz 50
Rated Main Busbar Current A 630 1250
1min Rated power Frequency Withstand Voltage To earth, Between Phases/to open gap kV 95/118
Lightning Impulse Withstand Voltage To earth, Between Phases/to open gap kV 185/215
Rated Short-time Withstand Current kA/s

20/2
25/4


Rated Peak Withstand Current kA 50 63
Rated Short- circuit Making Current kA 31.5 63
Rated Short-circuit Breaking Current kA 31.5 25
LV Unit Rated Voltage V 690








Rated Main Circuit Current   1600~3300
A
Rated Limit Short-circuit Breaking Capacity kA 50
Rated Operating Short-circuit Breaking Capacity kA 40
Rated Short-time Withstand Current kA/1s 40
Transformer Unit Rated Capacity kVA 1600~5500
Resistance Voltage % 4; 4.5
Tapping Range % ±2X2.5; ±5
Connected Group   Y,yn0; D,yn11
Enclosure Degree of Protection HV Room   IP33
LV Room   IP33
Transformer Room   IP23
Sound Level dB ≤55

Contact Details
Ningbo Tianan (Group) Co.,Ltd.

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
