24kV Outdoor Packaged Compact Substation IP4X Protection

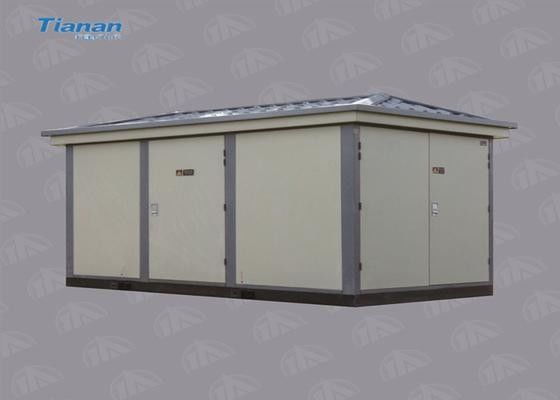

Large Image : 24kV Outdoor Packaged Compact Substation IP4X Protection

Product Details:

Place of Origin:	CHINA
Brand Name:	TIANAN
Certification:	CCC, ISO9001, CESI, TUV
Model Number:	ZBW1-24

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	US $20,000-40,000/ Piece
Packaging Details:	Nude
Delivery Time:	60work days
Supply Ability:	5000 Sets/ Year

Contact Now

Detailed Product Description

Voltage:

24KV/0.4KV

Protection Degree:

Transport Package:

Rated Capacity:

30~2000A

Highlight:

outdoor packaged 24kV compact substation

IP4X 24kV compact substation

outdoor packaged compact substation

24kV Compact Integrated Distribution substation Package Substation

Product Description

Summarize
ZBW1-24 series Packaged substation is a kind of integrated complete power transmission and distribution equipiment, used in 24kV, AC 50Hz power tranmission and distribution system with a transfromer of rated capacity of 30-2500kVA. It is widely used in out-door power supply fields such as high buildings, residentail zone, factory and mining , hotel, park, oil field, airport, wharf, railway, shopping store and other temporary facilities. This product can be used not only in a ring net fro power distribution but also can serve as terminal power supply for power transmiission line.

Features
ZBW1-24 series package substation consists of three parts: transformer room, high voltage room and low voltage room.
1. High voltage sides is equipped with HXGN series RMU (aerogenesis type, compressed air type, vacuum type or SF6 type), equipped with LBS, fuse inside (CB could be equipped, if required).
2. LV side adopts new type ACB, with high breaking capacity and good protection capacity.
3. Transformer room adopts oil immersed type or dry type transformer.
4. Caries materials can be used as enclosure materials, such as aluminum alloy plate, steel pate, compound plate, etc. Roof is double layered, protecting against heat radiation.
5. Inside, there are cooling equipment and anti-comdensation equipment.

Technical Data

	Items	Unit	Parameters
High Voltage Part	Rated voltage	kV	24
	Rated frequency	Hz	50
	Rated current of main busbar	A	630
	1mm power frequency withstand voltage (to earth and between phases/disconnecting fracture)	kV	50/65
	Lightning impulse withstand voltage (to earth and between phases/disconnecting fracture)	kV	95/110
	Rated short time withstand current	kA/s	25/2
	Rated peak withstand current	kA	63
	Rated short time making current	kA	50
	Rated transfer current	A	1500
	Breaking current of fuse	kA	31.5 40
Low Voltage Part	Rated voltage	V	400
	Rated current of main circuit	A	100-4000
	Rated limiting short circuit breaking ability	kA	80
	Rated operating short circuit breaking ability	kA	50 (65)
	Rated short time withstand current	kA/1s	50 (65)
	Branch current,compensating capacity	According to requirements of users
Transformer	Rated capacity	kVA	30-2000
	Impedance voltage	%	4 4.5
	Tapping range	%	±2×2.5 ±5
	Connection symbol	Y, yn0 D, yn11
Case	Protection level of enclosure	IP23
Case	Sound level	dB	≤50
