Three Phase 2500kVA Kiosk Substation 33kV Industrial Compact Transformer

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

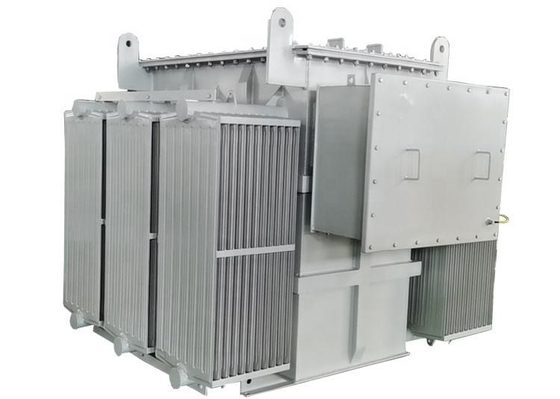

Three Phase 2500kVA Kiosk Substation 33kV Industrial Compact Transformer

Three Phase 2500kVA Kiosk Substation 33kV Industrial Compact Transformer
Three Phase 2500kVA Kiosk Substation 33kV Industrial Compact Transformer

Large Image :  Three Phase 2500kVA Kiosk Substation 33kV Industrial Compact Transformer

Product Details:
Place of Origin: China
Brand Name: Tianan Electric
Certification: IEC60076-1
Model Number: YBT13-40.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Wooden Case
Delivery Time: 45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 PCS/year
Detailed Product Description
Special Conditions: Depends On The Customer Tap Changer: Regulate The Output Voltage
Environment: Outdoor Transformer: Oil Transformer
Rated Frequency: 50 Altitude: <1,000m (Above Sea Level)
High Light:

Three Phase Industrial Kiosk Substation

,

2500kVA Kiosk Substation

,

Kiosk Industrial Compact Transformer

Three Phase 2500kVA Kiosk Substation 33kV Industrial Compact Transformer



Compact transformer(also can be called as Compact Substation, Prefabricated Substation) is suitable for business centers, schools, substations and etc, which can be matched flexibly, transported, installed and maintained easily. Also, it can save the space.





▶ Short installation period
The on site installation only takes 6 steps: fix the position, HV incoming terminal wiring, protection setting verifying, transmission tests, commissioning, and etc.

▶ Low cost
Compact transformer can help increase the quality of electricity feeding with reasonable cost.

▶ Complete insulation structure
Compact transformer includes HV and LV switchgear, transformer, circuit breakers and other devices without exposed live part in complete insulation structure to avoid electric shock risk and enhance safety level.

▶ Flexible combination method
Each Compact Transformer is a independent system, which varies the combination method.

▶ Stable and reliable performance
The enclosure of our Compact Transformer is made up of Al-Zn alloy coated steel, with inner aluminium alloy shrouding and fireproofing materials. The fans and dehumidifying device can also be installed inside it. The compact transformer is fit for both indoor and outdoor conditions.



2. HV Unit

1. Make various combinations at consumers’ requests,which are HXGT16-40.5, XGT5-40.5 and HXGT10-40.5 switchgears.

2. HXGT16-40.5 switchgear equipped with FT16-40.5R type load switch-fuse combined switch for wind power and photovoltaic power generation.

c. XGT5-40.5 switchgear equipped with VT16-40.5 circuit breaker.

d. The switchgear has the complete function for prevention of misoperation to ensure safety of operation and maintenance.

3. Transformer Unit

a. Transformer uses S11 type oil-immersed transformer or SCB11 dry type transformer.

b. Natural ventilation is good in transformer room or the temperature in transformer room can be lowered through the exhaustion of the wind with automatic control fan.

c. Soft connection is used between terminals on LV side and busbar, which can effectively protect LV bushing of the transformer from crush and oil leakage.

4. LV Unit

a. LV switchgear uses TANW1 series smart CB and TANM1 series MCCB, or the CB produced by designated manufacturer at customers’ request.

b. Curtained scheme can be designed according to the user’s requirements.

5. Distribution Network Automation unit

a. Automatic terminal equipment is TA-D20 type from Tianan Group, its design has been optimized after taking severe environment for the operation of wind power substation into consideration.

b. The product has strong ability to adapt the ambient temperature, communication function of dual fiber optic ring network, the strong ability of anti-interference, shockproof, moisture proof and anti-thunder, as well as low power loss.

c. The product has the functions of measurement control, non-battery protection, and data processing, monitoring alarms and abnormity detection and communication.

6. Uninterruptible Power Supply special for the power

a. Substation is installed TA-UP01/TA-UP02 uninterruptible power supply special for wind power produced by Tianan Group.

b. The product has strong ability to adapt the environment, resist shock and interference, and wide range of stabilivolt.



Parametres:



Item

Unit

Parameters





HV Unit Switch Type   Combined Electrical Apparatus Circuit Breaker
Rated Voltage kV 40.5 40.5
Rated Frequency Hz 50 50
Rated Main Busbar Current A 630 1250
1min Rated power Frequency Withstand Voltage To earth, Between Phases/to open gap kV 95/118 95/118
Lightning Impulse Withstand Voltage To earth, Between Phases/to open gap kV 185/215 185/215
Rated Short-time Withstand Current kA/s 20/2 25/4
Rated Peak Withstand Current kA 50 63
Rated Short- circuit Making Current kA 31.5 63
Rated Short-circuit Breaking Current kA 31.5 25
LV Unit Rated Voltage V 690
Rated Main Circuit Current A 1600~3300
Rated Limit Short-circuit Breaking Capacity kA 50
Rated Operating Short-circuit Breaking Capacity kA 40
Rated Short-time Withstand Current kA/1s 40
Transformer Unit Rated Capacity kVA 1600~5500
Resistance Voltage % 4; 4.5
Tapping Range % ±2X2.5; ±5
Connected Group   Y,yn0; D,yn11
Enclosure Degree of Protection HV Room   IP33
LV Room   IP33
Transformer Room   IP23
Sound Level dB ≤55
