132KV 16000KVA Explosion Proof Prefabricated Distribution Transformer Substation Compact Transformer Substation

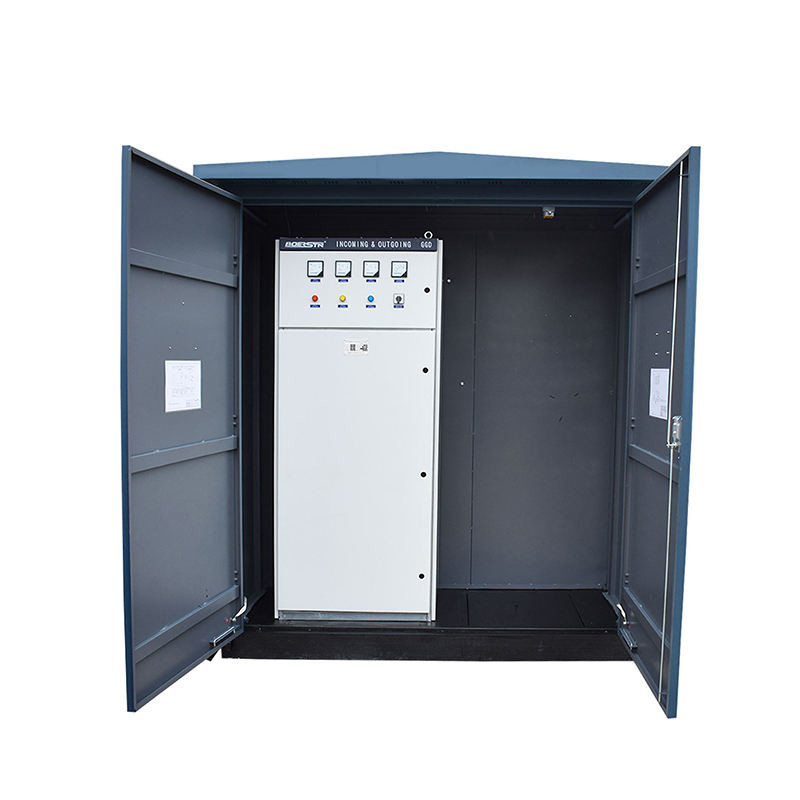

Large Image : 132KV 16000KVA Explosion Proof Prefabricated Distribution Transformer Substation Compact Transformer Substation

Product Details:

Place of Origin:	CHINA
Brand Name:	Tianan Electric
Certification:	IEC
Model Number:	CZBT1-132

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Pending
Packaging Details:	Wooden Carton
Delivery Time:	45 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10000 units/year

Contact Now

Detailed Product Description

Frequency:	50Hz	Special Conditions:	Depends On The Customer
System Voltage:	132KV 145Kv	Capacity:	16000KVA
Sound Level:	≤65 DB	Protection Accuracy:	5P20
Highlight:	Explosion Proof Distribution Transformer Substation , Prefabricated Distribution Transformer Substation , Prefabricated power distribution transformer

132kV Prefabricated Distribution Transformer Substation - Explosion Proof

Vehicle-Mounted Mobile Substation

China's first vehicle-mounted movable substation, delivered to Iraq in December 2008. This 132kV voltage class, 16,000KVA capacity product was completely researched, developed, designed, and manufactured independently.

Modular Design Structure

Divided into HV part, main transformer, and LV switchgear room
HV switch utilizes ZF10-145(L) as main switch, mounted on semi-trailer
LV side includes switchgear, control power, DC panel, and control protection device

Service Conditions

Ambient Conditions

Altitude ≤ 1000m
Ambient temperature range: -25℃ to +40℃
Wind speed (outdoor) ≤ 35m/s
Relative humidity ≤ 90% at +25℃
Installation location must be free from fire, explosion, chemical corrosion, and excessive vibration

Movement Conditions

Maximum speed ≤ 30km/h on flat road surfaces
Maximum speed ≤ 10km/h on uneven road surfaces

Note: If the above conditions cannot satisfy requirements, customers can consult with the manufacturer for resolution.

Technical Specifications

General Specifications

Item	Unit	Parameter
System voltage	kV	132
Rated voltage	kV	145
Rated frequency	Hz	50
Rated current	A	2000, 1600
Rated 1min power frequency withstand voltage	kV	275
Rated lightning impulse withstand voltage	kV	650
Rated short time withstand current	kA	25, 31.5, 40
Rated short time withstand time	s	3
Rated peak withstand current	kA	63, 80, 100

Circuit Breaker Specifications

Item	Unit	Parameter
System voltage	kV	132
Rated voltage	kV	145
Rated frequency	Hz	50
Rated current	A	2000
Rated 1min power frequency withstand voltage	kV	275
Rated lightning impulse withstand voltage	kV	650
Rated short time withstand current / time	kA/s	40/4
Rated peak withstand current	kA	100
Rated short circuit breaking current	kA	40
Rated short circuit making current	kA	100
DC component	%	40
Rated operation sequence		O _0.3s_ CO _180s_ CO
Opening time	ms	35±5
Closing time	ms	105±15
Breaking time	ms	≤60
Non-simultaneity between poles - Closing	ms	≤5
Non-simultaneity between poles - Opening	ms	≤3
Fracture no. of each pole		1
Mechanical endurance	Times	≥6000
Full capacity continuous breaking times	Times	≥20
SF6 gas pressure (20℃) - Rated value	MPa	0.60
SF6 gas pressure (20℃) - Alarm value	MPa	0.55
SF6 gas pressure (20℃) - Locking value	MPa	0.50
SF6 gas moisture content - Acceptance value	PPm	≤150
SF6 gas moisture content - Operation allowable value	PPm	≤300
SF6 yearly gas leakage rate	%	≤0.5
Total weight of each circuit breaker	kg	2000

Current Transformer Parameters

Current Ratio	Rated Output Capacity VA	Measure Accuracy Level	Protection Accuracy Level
150/5	20	0.5	5P20
300/5	20	0.5	5P20
500/5	30	0.5	5P20
750/5	30, 40	0.5	5P20
1000/5	40, 50	0.5	5P20
1500/5	50	0.5	5P20
2000/5	50	0.5	5P20

Note: Straight-through type bushing current transformer is attached in the circuit breaker.

Lightning Arrester Parameters

Item	Unit	Parameter
System voltage	kV	132
Rated voltage	kV	150
Rated frequency	Hz	50
Nominal discharge current	kA	10
DC 1mA reference voltage	kV	≥245
Residual voltage under lightning impulse current (peak)	kV	≤435
Residual voltage under operation impulse current (peak)	kV	≤370
Residual voltage under steep wave impulse current (peak)	kV	≤490

Neutral Point Lightning Arrester Parameters

Item	Unit	Parameter
System voltage	kV	132
Rated voltage	kV	90
Rated frequency	Hz	50
Nominal discharge current	kA	1.5
DC 1mA reference voltage	kV	≥140
Residual voltage under lightning impulse current (peak)	kV	≤260
Residual voltage under operation impulse current (peak)	kV	≤240
Residual voltage under steep wave impulse current (peak)	kV	/

Low Voltage Side Switch Equipment Parameters

Item	Unit	Parameter
System voltage	kV	11.5
Rated voltage	kV	12
Rated frequency	Hz	50
Rated current	A	2000, 1600, 1250
Rated 1min power frequency withstand voltage	kV	42/48
Rated lightning impulse withstand voltage	kV	75/85
Rated short time withstand current	kA	40, 31.5, 25
Rated short time withstand time	s	4
Rated peak withstand current	kA	100, 80, 63
Rated short circuit breaking current	kA	40, 31.5, 25
Rated short circuit making current	kA	100, 80, 63
Rated operation sequence		O _0.3s_ CO _180s_ CO
Mechanical endurance	Times	≥10000
