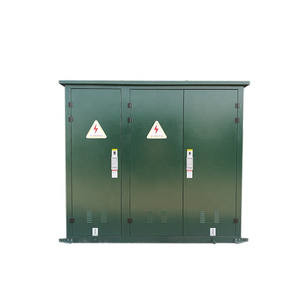

Compact Mini Box Type Transformer Substation 6300kva 50HZ

Compact Mini 6300kva Boxtype Transformer Substation

a. Rated Voltage: HV Side:12kV, LV Side: 0.4kV.

b. Rated Current: HV Side: 630A, LV Side: 1000A.

c. Transformer Capacity: 50～500kVA.

1. DBW1 Series Buried Type Substation is the newly researched and developed. It fills the blank of China, and be suitable for new pattern box-type substation of city network transformation and construction.

2. DBW1 Series Buried Type Substation is the independent complete transformation and distribution device of AC 6~10kV network with 50Hz of rated frequency and 0~500kVA of rated capacity. It can be suitable for scenic spots and historical interests, residential zone as city public and street light transformer, which can save large of city areas. Especially the ground part with low height and small floor place is suitable for locating at sidewalk or the side of road because it has no interruption for the view and no affects for the scenery.

3. DBW1 Series Buried Type Substation is not only useful for ring network distribution system, but also as a substation of the terminal of radial power grid.

The products have small area, low over ground height, no noise, high power distribution reliability, and it is fitted with distribution network automation terminal equipment FTU and automatic drainage and exhaust equipment.
