| Capacity: | 30—1600kVA | High Voltage: | 12KV |
|---|---|---|---|
| Low Voltage: | 400V | HV Units: | SF6 RMU |
| Shell Material: | Aluminum Alloy | ||
| High Light: | Compact Substation Transformer With RMU,Compact Substation Transformer 500KVA |
||

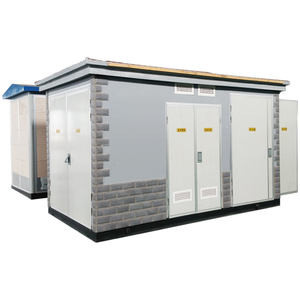

OEM 315 KVA 500KVA 33KV 15/0.4KV Compact Substation Transformer With RMU
This product has the advantages of smaller volume,compact structure,high heat insulation and ventilation function,dust-proof,prevent small animal to enter,moist-proof,beautiful appearance and convenient to maintenance, we can choose cold-rolled steel plate,compound color plate and other material to make up enclosure.
All the black material of substation are taken surface anticorrosive treatment, it will guarantee that product will be not corroded for a long time.
HV side use HXGN26-12(F), with complete operation mistake prevention function.
Main technical parameters
Technical data of HXGN26-12(F) RMU (equipped with FN26-12 SF6 Load Switch), see table 1
Table 1
| Items | Unit | Parameter |
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current of main busbar | A | 630 |
| Rated short time withstand current of main circuit and earth circuit | kA/s | 25/2 |
| Rated peak withstand current of main circuit and earth circuit | kA | 63 |
| Rated short circuit making current of main circuit and earth circuit | kA | 50 |
| Full capacity breaking times of load switch | Times | 100 |
| Fuse breaking current | kA | 31.5 40 |
| Mechanical endurance | Times | 10000 |
| 1 min power frequency withstand voltage (r.m.s) phase to earth,between phase/ isolating distance |
kV | 42/48 |
| Lighting impulse withstand voltage(peak) phase to earth,between phase/ isolating distance |
kV | 75/85 |
| Secondary circuit 1 min power frequency withstand voltage | kV | 2 |
Technical data of FN26-12 SF6 Load Switch, see table 2
Table 2
| Items | Unit | Parameter |
| Rated voltage | kV | 12 |
| Rated current | A | 630 |
| Rated frequency | Hz | 50 |
| 1 min power frequency withstand voltage (r.m.s) phase to earth,between phase/ isolating distance |
kV | 42/48 |
| Lighting impulse withstand voltage(peak) phase to earth,between phase/ isolating distance |
kV | 75/85 |
| Rated short time withstand current | kA/s | 25/2 |
| Rated peak withstand current | kA | 63 |
| Rated short circuit making current | kA | 50 |
| Rated active load breaking current | A/times | 630/100 |
| Rated cable charging current | A | 10 |
| Rated un-load transformer breaking current | 1600KVA transformer un-load current | |
| Main circuit resistance | µΩ | ≤85 |
| Rated SF6 gas pressure (in 20ºC) | Mpa | 0.04 |
| Mechanical endurance | Times | 10000 |
Switch parameter on the LV side
Main switch adopts TANW1,MT series, shunt switch adopts TANM1,NSX series, see table 3
Table 3
| Type | Limit short circuit breaking capacity Icu (400V) KA | Running short circuit breaking capacity Ics (400V) KA |
| TANW1-2000 | 80 | 50 |
| MT08N1 | 42 | 42 |
| MT10N1 | 42 | 42 |
| MT12N1 | 42 | 42 |
| MT20 | 65 | 65 |
| TANM1-100S | 35 | 17.5 |
| TANM1-225S | 35 | 17.5 |
| TANM-400S | 50 | 25 |
| TANM-630S | 50 | 25 |
| TANM1-800S | 75 | 50 |
| NSX-100N | 50 | 50 |
| NSX-250N | 50 | 50 |
| NSX-400N | 50 | 50 |
| NSX-630N | 50 | 50 |
Structure and appearance:
1. Substation base plate and supporting structure adopt U-steel and angle steel, it has higher mechanical intensity, enclosure adopts cold-rolled steel plate or compound color plate. It has beautiful appearance that there are no threaded connection or rivet connection from the exposed surface.
2. Use clapboard to divide into independent room between each room of substation.
3. In order to observe and maintain, LV room and HV room have lighting device.
4. Reversible connecting parts of substation adopt rubber belt to seal, with good damp-proof capacity.
5. HV room is equipped with HXGN26-12(F) RMU, and also with SF6 load switch,fuse(adopts circuit breaker,lighting arrester,earth switch and mechanical interlock device if it required,.
6. If adopts HV measuring, it is also equipped with voltage transformer,current transformer and measuring meter.
7. Each LV elements in LV room should be frontal arranged.
8.Instrument room on the top, it has observing window on the front. each element has independent and removable plate,can be convenient to maintain.
According to the requirement of reactive compensation, it should be equipped electric device, its capacity is 15~20% of transformer.
