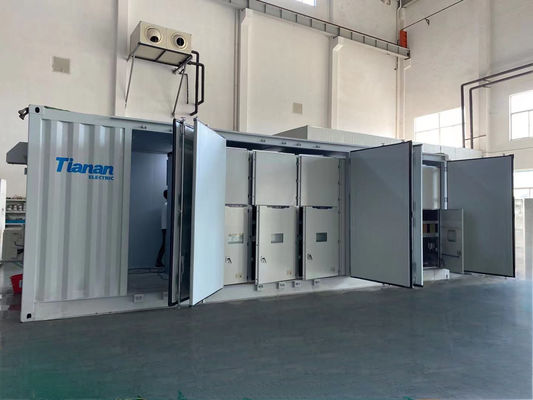

Compact Miniature Power Transformer for 60Hz Rated Frequency and 630A Rated Current of Main Busbar

Product Description:

The Compact Transformer Substation is a versatile and efficient solution that serves as a Miniature Power Transformer, providing reliable power distribution in a compact and space-saving design. This innovative product is designed to meet the needs of various applications with a rated current of main busbar at 630A, ensuring optimal performance and efficiency.

With a rated frequency of 60Hz, this Compact Electrical Transformer is suitable for use in diverse environments and applications, offering consistent power supply at the required frequency. The integration of advanced technology and high-quality components ensures stable and reliable operation, making it a dependable choice for power distribution systems.

The Compact Transformer Substation features a rated voltage of DC110V for the DC Panel, allowing for seamless integration with different electrical systems. This flexibility in voltage compatibility enhances the product's versatility and usability, catering to a wide range of power distribution requirements across various industries.

Equipped with a degree of protection rated at IP54, this Miniature Power Transformer offers superior protection against dust and water ingress, ensuring durability and longevity in challenging environmental conditions. The robust construction and reliable sealing mechanisms provide peace of mind regarding the safety and performance of the transformer in diverse operating environments.

Operating at a temperature of 26℃, the Compact Transformer Substation maintains optimal performance levels under normal operating conditions. The efficient thermal management system ensures that the transformer operates within the specified temperature range, enhancing reliability and preventing overheating issues that can affect performance and lifespan.

In conclusion, the Compact Transformer Substation is a high-performance and reliable solution that combines the benefits of a Miniature Power Transformer with a compact design, making it an ideal choice for various power distribution applications. With its excellent rated current, frequency, voltage, degree of protection, and temperature specifications, this Compact Electrical Transformer offers a dependable and efficient solution for powering electrical systems with precision and reliability.

Features:

• Product Name: Compact Transformer Substation
• Resistance of main circuit: A: 242μΩ, B: 237μΩ, C: 252μΩ
• Degree of protection: IP54
• Battery capacity: 40Ah
• Rated frequency: 60Hz
• Standard: IEC62271-200

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the Compact Transformer Substation:

The Prefabricated switching station model YB-24, originating from China, is a versatile solution for various electrical power needs. With certifications from IEC&GB, this compact electrical transformer is suitable for a wide range of applications.

Whether it is for industrial facilities, commercial buildings, residential complexes, or infrastructure projects, the YB-24 compact transformer substation is designed to meet the demand for efficient power distribution. Its compact size and easy installation make it ideal for locations with limited space or where a traditional substation is not feasible.

With a rated voltage of 24KV and rated current of main busbar at 630A, this miniature power transformer is capable of handling different loads and ensuring reliable power supply. The KYN28-24 HV switchgear type further enhances its performance and safety features.

Operating at a rated frequency of 60Hz and a temperature of 26℃, the YB-24 compact transformer substation is built to deliver consistent power output in various environmental conditions. Its robust construction and quality components make it a dependable choice for critical power distribution tasks.

Whether it is a new construction project, a retrofitting initiative, or an emergency power requirement, this compact transformer substation offers flexibility and reliability. The minimum order quantity of 1 set, along with a supply ability of 500 per year, ensures quick availability for urgent needs.

With packaging details as nude and delivery time of 45 days per set, customers can expect a seamless procurement process. The flexible payment terms of FOB, EXW, CIF, among others, provide convenience and options for different purchasing preferences.

Customization:

Product Customization Services for the Compact Transformer Substation

Brand Name: Prefabricated switching station

Model Number: YB-24

Place of Origin: CHINA

Certification: IEC&GB

Minimum Order Quantity: 1 SET

Price: To be confirmed

Packaging Details: Nude

Delivery Time: 45 DAYS/SET

Payment Terms: FOB, EXW, CIF and so on

Supply Ability: 500 PER YEAR/SET

Standard: IEC62271-200

Resistance of main circuit: A:242μΩ, B:237μΩ, C:252μΩ

Type of HV switchgear: KYN28-24

Rated voltage: 24KV

Degree of protection: IP54

Support and Services:

The Compact Transformer Substation product comes with comprehensive Product Technical Support and Services to ensure smooth operation and efficiency. Our technical support team is available to assist with any product-related queries, troubleshooting, and maintenance needs. Additionally, we offer services such as installation support, training programs, and on-site maintenance to optimize the performance of the Compact Transformer Substation.
