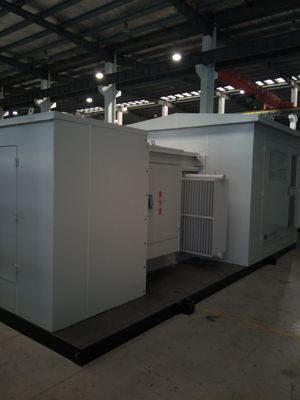

JB/T 10217-2013 Standards and 1000 KVA Battery Capacity Miniature Power Transformer for Performance

Product Description:

The Compact Transformer Substation is a state-of-the-art solution designed for efficient power distribution in indoor settings. Compliant with the JB/T 10217-2013 standards, this miniature power transformer boasts a range of features that make it a reliable and versatile choice for various applications.

With a three-phase installation type, the Compact Transformer Substation is optimized for seamless integration into existing electrical systems. Its compact design ensures that it can be conveniently installed in limited spaces without compromising on performance or functionality.

Featuring a battery capacity of 1000 KVA, this compact electrical transformer delivers a high level of power output, making it suitable for demanding operational requirements. Whether used in industrial facilities, commercial buildings, or residential complexes, this transformer provides a reliable source of electricity to support continuous operations.

The Vector Group of Dyn11 further enhances the efficiency and performance of the Compact Transformer Substation. This configuration ensures optimal voltage regulation and reduces losses, resulting in improved overall energy efficiency.

Designed to meet the needs of modern power distribution systems, the Compact Transformer Substation offers a cost-effective and reliable solution for ensuring a stable and uninterrupted power supply. Its advanced features and robust construction make it a dependable choice for various industries and applications.

Whether used in manufacturing plants, data centers, or utility substations, this miniature power transformer excels in delivering consistent and high-quality power distribution. Its compact size and efficient design make it easy to install and maintain, providing a hassle-free solution for powering critical electrical systems.

In summary, the Compact Transformer Substation is a versatile and reliable solution for indoor power distribution applications. With its adherence to industry standards, efficient three-phase installation, high battery capacity, and advanced Vector Group configuration, this compact electrical transformer offers a superior level of performance and reliability.

Features:

• Product Name: Compact Transformer Substation
• Type: ZGS-Z.G-1000/38.5
• Rated voltage: 315 KV
• Cooling method: ONAN
• No. of phase: 3 Phases
• Rated frequency: 50Hz

Technical Parameters:

Applications:

The Combined Transformer for Photovoltaic Power Generation, model ZGS-ZG-1000/38.5, is a versatile and efficient compact electrical transformer suitable for various applications. This product, originating from China and certified by IEC&GB, is designed to meet the growing demands of the energy sector with its high-quality specifications.

One of the key application occasions for this transformer is in photovoltaic power generation systems. Its compact size and indoor installation type make it ideal for use in solar power plants, where space may be limited. The transformer's Miniature Power Transformer design ensures that it can be easily integrated into existing setups without taking up excessive space.

Furthermore, the ZGS-ZG-1000/38.5 transformer is also suitable for industrial settings where reliable power distribution is crucial. Its 3-phase configuration and Dyn11 vector group allow for efficient power transmission, making it a valuable asset in factories, warehouses, and other industrial facilities.

With a short-circuit impedance of 6.81%, this compact electrical transformer offers enhanced safety and stability during operation, minimizing the risk of power failures or equipment damage. Its high supply ability of 500 per year ensures that businesses can easily procure and deploy multiple units as needed.

Customers can benefit from flexible payment terms such as FOB, EXW, and CIF, making the purchasing process convenient and transparent. The minimum order quantity of 1 set allows for easy procurement, while the delivery time of 45 days per set ensures timely deployment of the transformers.

In conclusion, the ZGS-ZG-1000/38.5 Combined Transformer for Photovoltaic Power Generation is a reliable and efficient solution for various application scenarios, from solar power plants to industrial installations. Its compact design, high-quality specifications, and versatile installation options make it a valuable asset for businesses looking to enhance their power distribution systems.

Customization:

Product Customization Services for the Compact Transformer Substation:

Brand Name: Combined Transformer for Photovoltaic Power Generation

Model Number: ZGS-ZG-1000/38.5

Place of Origin: CHINA

Certification: IEC&GB

Minimum Order Quantity: 1 SET

Price: To be confirmed

Packaging Details: Nude

Delivery Time: 45 DAYS/SET

Payment Terms: FOB, EXW, CIF and so on

Supply Ability: 500 PER YEAR/SET

No. of phase: 3 Phases

Standards: JB/T 10217-2013

Short-Circuit Impedance: 6.81%

Cooling method: ONAN

Rated voltage: 315 KV

Support and Services:

The Compact Transformer Substation product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is available to assist with installation, setup, troubleshooting, and maintenance of the substation. Additionally, we offer training sessions for operators and maintenance personnel to enhance their understanding of the product and improve overall efficiency.
