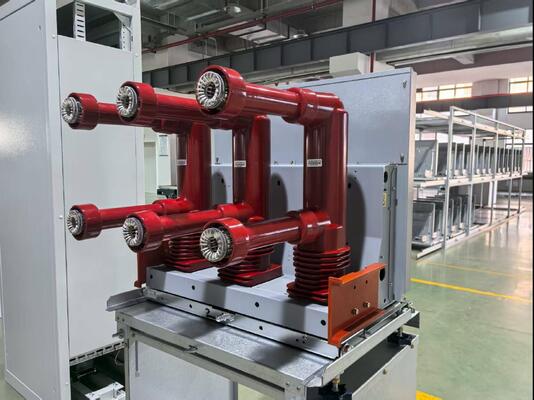

Closing bounce 1025 M per second High Voltage Vacuum Circuit Breaker built for stable operation and power system management

Product Description:

The High Voltage Vacuum Circuit Breaker is an advanced electrical device designed to ensure the safe and reliable interruption of high voltage electrical circuits. Engineered to meet rigorous international standards, this circuit breaker complies with the IEC62271-100 standard, which guarantees its performance, safety, and durability in demanding electrical environments. This makes it an ideal choice for power distribution systems, industrial applications, and utility substations where high voltage circuit interruption is critical.

One of the key features of this High Voltage Vacuum Circuit Breaker is its energy storage voltage of DC 110V. This voltage level is essential for the proper operation of the breaker’s mechanism, providing the necessary power to ensure swift and efficient circuit opening and closing actions. The DC 110V storage voltage facilitates reliable operation under various conditions, enhancing the overall stability and responsiveness of the circuit breaker in high voltage networks.

Additionally, the breaker boasts a closing bounce of just 1.025 meters per second. Closing bounce, which refers to the brief rebound that occurs when the contacts close, is a critical parameter affecting the contact stability and longevity. A closing bounce of 1.025 M/s indicates that this High Voltage Vacuum Circuit Breaker is designed to minimize contact wear and electrical arcing, resulting in reduced maintenance requirements and extended operational life. This precise control of contact dynamics ensures that the circuit breaker performs consistently and reliably during every switching operation.

The structural design of the High Voltage Vacuum Circuit Breaker features a hand car type construction. This hand car structure type provides robust mechanical support and ease of operation, enabling maintenance personnel to handle the device safely and efficiently. The design facilitates smooth insertion and withdrawal of the breaker from its compartment, making it convenient for inspection, maintenance, or replacement. This ergonomic design aspect contributes to reducing downtime and improving operational efficiency in high voltage electrical systems.

Furthermore, the clearance between contacts is meticulously maintained at 12.55 millimeters. This specific clearance ensures optimal insulation and prevents unintended electrical arcing between contacts when the breaker is in the open position. Maintaining a clearance of 12.55 M/m helps to uphold the dielectric strength of the breaker and ensures safe interruption of the high voltage circuit. This dimension is critical in achieving reliable performance in high voltage switching operations and protecting the electrical system from faults and overloads.

The High Voltage Vacuum Circuit Breaker stands out not only because of its technical specifications but also due to its adaptability and compliance with international standards. Adhering to IEC62271-100 means that the breaker has passed stringent tests for operational performance, mechanical endurance, and dielectric strength, making it suitable for global applications. This compliance assures users that the product is manufactured following best practices and meets the highest industry benchmarks for safety and quality.

In summary, the High Voltage Vacuum Circuit Breaker offers a combination of advanced features such as a DC 110V energy storage voltage, minimal closing bounce of 1.025 M/s, an ergonomically designed hand car structure, and a carefully controlled contact clearance of 12.55 M/m. Coupled with its adherence to the IEC62271-100 standard, this breaker guarantees dependable and efficient performance in high voltage electrical systems. Whether used in power distribution networks, industrial plants, or utility substations, the High Voltage Vacuum Circuit Breaker delivers exceptional reliability, safety, and operational excellence, making it an indispensable component in modern electrical infrastructure.

Features:

• Product Name: High Voltage Vacuum Circuit Breaker
• Rated Voltage: 12KV Vacuum Circuit Breaker
• Closing Time: 32.75 Ms
• Closing Bounce: 1.025 M/s
• Center Distance Between Phases: 275 Mm
• Rated Current: 630 A
• Structure Type: Hand Car
• Reliable performance as a High Voltage Circuit Breaker

Technical Parameters:

Applications:

The TIANAN High Voltage Vacuum Circuit Breaker, model VS1-24/630-25, is a highly reliable and efficient solution designed for various high voltage electrical systems. Manufactured in China and certified under GB standards, this High Voltage Circuit Breaker is well-suited for industrial, commercial, and utility power distribution networks. Its robust design ensures safe interruption of electrical currents, making it indispensable in scenarios where system protection and operational continuity are critical.

One of the primary application occasions for the VS1-24/630-25 High Voltage Vacuum Circuit Breaker is in medium-voltage switchgear assemblies in substations. With a rated current of 630 A and an opening speed of 1.445 M/s, it ensures rapid disconnection of faulty circuits, minimizing damage and enhancing system reliability. The energy storage voltage of DC 110V supports quick and stable operation, while the closing time of just 32.75 milliseconds guarantees prompt circuit engagement during normal or emergency conditions.

This High Voltage Vacuum Circuit Breaker is also ideal for installation in industrial plants where high voltage equipment requires dependable circuit protection. The hand car structure type facilitates easy installation, maintenance, and replacement, making it a preferred choice in power generation facilities, manufacturing units, and heavy industries. Its compact and sturdy design enables it to withstand harsh environmental conditions often encountered in such settings.

Additionally, the VS1-24/630-25 breaker is widely used in commercial building power distribution systems to ensure safety and stability. Its packaging on wooden pallets ensures secure transportation and handling, supporting logistics for minimum order quantities of 5 sets. Delivery times are arranged according to actual circumstances, and payment terms and pricing are to be determined, allowing for flexible procurement planning.

In summary, the TIANAN High Voltage Vacuum Circuit Breaker VS1-24/630-25 is an essential component in various electrical systems requiring reliable high voltage circuit interruption. Its certified quality, efficient performance parameters, and user-friendly design make it suitable for substations, industrial plants, and commercial power distribution scenarios, ensuring protection, safety, and operational continuity.

Customization:

TIANAN offers customized High Voltage Circuit Breaker solutions with the model number VS1-24/630-25, manufactured in CHINA. Our 12KV Vacuum Circuit Breaker is designed to meet the highest standards, certified under GB and compliant with IEC62271-100.

This High Voltage Vacuum Circuit Breaker features a rated current of 630 A and a reliable hand car structure type for ease of operation. The breaker boasts an opening time of 24.23 ms and a closing time of 32.75 ms, ensuring prompt and efficient performance.

We provide a minimum order quantity of 5 SETS, with packaging details including sturdy WOODEN PALLET to ensure safe delivery. Delivery time is determined according to actual conditions, and price and payment terms are to be pending based on client requirements.

With TIANAN’s High Voltage Circuit Breaker customization services, you can expect quality, reliability, and compliance tailored to your specific needs for 12KV Vacuum Circuit Breaker applications.

Support and Services:

Our High Voltage Circuit Breaker product comes with comprehensive technical support and services designed to ensure optimal performance and reliability. Our team of experienced engineers provides expert guidance on installation, operation, and maintenance procedures to maximize the lifespan and efficiency of your circuit breaker.

We offer detailed product documentation, including user manuals, wiring diagrams, and troubleshooting guides to assist you in every step of your usage. Regular maintenance services are available to prevent unexpected failures and to maintain compliance with industry standards.

In addition, we provide training programs for your technical staff to enhance their knowledge and skills in handling high voltage circuit breakers safely and effectively. Should any issues arise, our dedicated support team is ready to assist with prompt diagnosis and resolution to minimize downtime.

Spare parts and upgrade options are also available to keep your equipment up-to-date and functioning at peak performance. Trust our High Voltage Circuit Breaker technical support and services to deliver reliability, safety, and peace of mind for your high voltage electrical systems.
