Gas - insulated Metal - Clad Medium Voltage Switchgear 12KV Power Distribution Cabinet

China Gas - insulated Metal - Clad Medium Voltage Switchgear 12KV Power Distribution Cabinet supplier
Gas - insulated Metal - Clad Medium Voltage Switchgear 12KV Power Distribution Cabinet supplier Gas - insulated Metal - Clad Medium Voltage Switchgear 12KV Power Distribution Cabinet supplier Gas - insulated Metal - Clad Medium Voltage Switchgear 12KV Power Distribution Cabinet supplier

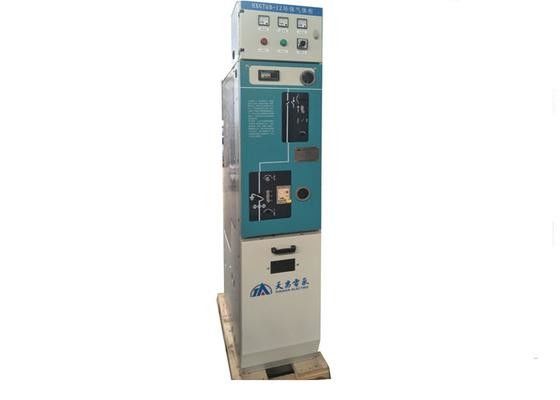

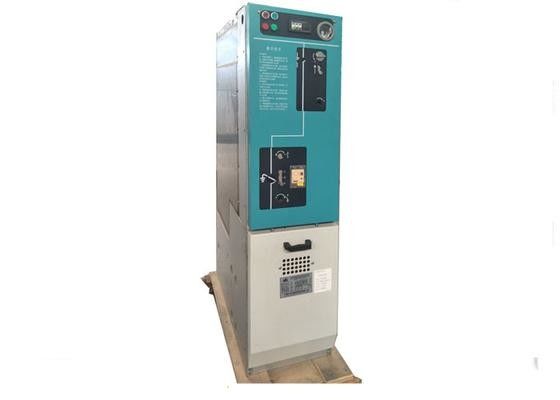

Large Image :  Gas - insulated Metal - Clad Medium Voltage Switchgear 12KV Power Distribution Cabinet

Product Details:

Place of Origin: CHINA
Brand Name: Tianan Electric
Model Number: HXGT6B-12F-T630-20-

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: Pending
Packaging Details: wooden case
Delivery Time: 45 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000units per year
Contact Now
Detailed Product Description
New Type: Environmentally-friendly Rated Voltage: 12Kv
Gas Raled Pressure: 0.03MPa Protection Degree Of Enclosure: IP4X

Indoor Gas - insulated Metal - Clad Switchgear 12KV Power Distribution Cabinet



HXGT6B-12F-T630-20 series ,SF6 Ring Main Unit Switchgear / Gas-insulated Metal-Clad Switchgear ,which is new environmentally-friendly type applied in city grid transformation and construction.



Technical Parameters of HV Fuse

Type XRNT-12 XRNT-24
Rated Voltage 12 24
Rated Fuse Current 100
Rated Fusant Current 10/16/20/31.5/40/50/63/80/100
Rated Breaking Current 31.5



Electrical parameters of load switch ,load switch-fuse composie apparatus and circuit breaker

Item Unit Parameters
Unit Load Switch Composite apparatus Circuit breaker
1 Rated Voltage kV 12,24
2 Rated Frequency Hz 50/60
3 Rated Current A 630 100 1250
4 Rated Short-time Withstand Current kA/s 20/4,25/2   20/4,25/2
5 Rated Short Circuit Making Current (Peak) kA 50   50,63
6 Mechanical Life Times 5000 5000 10000
7 1min Power Frequency Withstand Voltage to Earth, Between Phases/ Across the open gap kV 42/48,65/79
8 Lightning Impulse Withstand Voltage to Earth, Between Phases/ Across the open gap kV 75/85,125/145
9

Rated single capacitor bank/

back to back capacitor bank breaking current

A 630/400
10 Motor Operational Power Supply, Voltage V DC48, AC220, 110
11 Rated Short circuit breaking current A   31.5 20 ,25
12 Rated Transfer Current A 1500
