12KV Indoor HV AC Vacuum Load Switch - Fuse Combination Apparatus



Overview

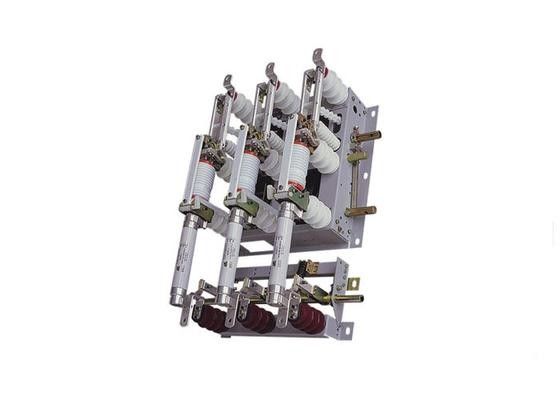

FN16A-12RD/200-31.5 Type combination units within FN16A-12 in combination with a high-voltage load switch current limiting fuse together the indoor high voltage switchgear, the upper end of the fuse is fixed to the lower bracket of the vacuum interrupter, the lower end is fixed to the seat by contacting the insulator, lower bracket grounding switch and fuse together. Grounding switch and disconnecting switch with mechanical interlock.It  can break load current,overload current and short circuit current.


Technical Parameters: Load switch - fuse combinations



No. Item Unit Parameters
1 Rated voltage kV 12
2 Rated frequency Hz 50
3 Maximum rated current fuse A 200
4 Rated transfer current A 3150
5 Melting tube trigger opening time of the switch ms 31 (0 + 5)
6 Rated short circuit breaking current (expected value) kA 31.5
7 Rated short-circuit current (prospective peak) kA 80
8 1 min power frequency withstand voltage (rms)
to ground, interphase, vacuum fracture / isolation fracture
kV 42/48
9 Lightning impulse withstand voltage (peak) to
ground, interphase, vacuum fracture / isolation fracture
kV 75/85
10 Fuse link striking output energy J 2 ~ 5
11 Net weight kg 75
12 Dimensions mm 720 x 490 x 4065
13 Package dimension mm

1115 x 900 x 520





Technical Parameters: combination of electrical fuses
Type Rated voltage (kV) Fuse rated current(kA) Rated breaking current(kA) Melt the rated current(A)
SDLAJ.XRNT
12
40 31.5,40,50 6.3,10,16,20,25,31.5,40
SFLAJ.XRNT 100 50, 63, 71, 80, 100
SKLAJ.XRNT 125 125
German company SBA 12 200 40 160, 200
