Indoor High Voltage Load Switch , Vacuum Load Breaker Switch Fuse Combinations

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

Indoor High Voltage Load Switch , Vacuum Load Breaker Switch Fuse Combinations

Indoor High Voltage Load Switch , Vacuum Load Breaker Switch Fuse Combinations
Indoor High Voltage Load Switch , Vacuum Load Breaker Switch Fuse Combinations

Large Image :  Indoor High Voltage Load Switch , Vacuum Load Breaker Switch Fuse Combinations

Product Details:
Place of Origin: CHINA
Brand Name: Tianan Electric
Model Number: FT16-40.5
Payment & Shipping Terms:
Minimum Order Quantity: 10set
Price: Pending
Packaging Details: wooden cases
Delivery Time: 35 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000sets per year
Detailed Product Description
Rated Voltage: 40.5KV Rated Current: 630A
Fuse Rated Current: 100A Earthing Switch Making Currrent: 31.5KA
High Light:

high voltage load switch

,

vacuum load break switch

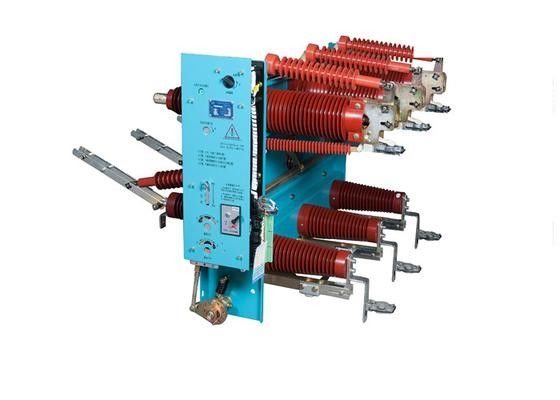

Indoor High Voltage Vacuum Load Breaker Switch ,Load Switch - Fuse Combinations



General

FT16-40.5,FT16-40.5R is applied in power grid with AC 50HZ,rated voltage of 35Kv.It can be applied in breaking the load current,overload current and short-circuit current.The product is the main element of HXGT16-40.5 indoor AC metal-clad switchgear and DFT16-40.5 outdoor HV cable branch box.HXGT16 is especially designed for 35KV compact substation ,secondary small scale distribution substation.It is particularly the best choice of wind turbine generator system and power transmission gri equipment for control and protection of the transformer terminal.DTW is a transit station for power transmission cable ,used for outdoor cable line control ,contact,tap,branch or conversion.



Parameters

S/N Item Unit Data
1 Rated voltage kV 40.5
2 Rated frequency Hz 50
3 Rated current A 630
4 Fuse Rated current A 100
5 Rated short-time Withstand Current KA 20
6
Rated short-circuit Duration

Rated short-circuit making Current

s 4
7 KA 50
8 Rated peak withstand current KA 50
9 Rated load breaking Current A 630
10 Rated Transfer (take-over)breaking current(with 100A fuses) A 2000
11 Earthing switch making current KA 31.5
12 FT16-40.5 main circuit resistance uΩ ≤200
13 FT16-40.5R Main circuit resistance (not including fuse link resistance) uΩ ≤400
14 Opening time ms 60-70
15 Fuse rated breaking current KA 31.5
16 Rated insulation level 1min Power
frequency withstand
voltage
phase to phase/ phase-to-ground KV 95
Fracture/isolating Fracture 95/118
lightning impulse
withstand voltage
(peak value)
Phase to phase/ phase-to-ground 185
Fracture/isolating Fracture 185/215
17 Mechanical life Load switch Time 10000
Disconnector 2000
Earthing switch 2000
18 Dimensions HXGT16 Width mm 1200,2000
Depth 1600
Height 1900,2000
DTW Width 1800
Depth 2300
Height 2100


Contact Details
Ningbo Tianan (Group) Co.,Ltd.

Contact Person: Ms. Lian Huanhuan

Tel: +86-13858385873

Fax: 86-574-87911400

Send your inquiry directly to us (0 / 3000)
