Indoor AC High Voltage Vacuum Circuit Breaker , VS1(ZN63A)-12 Circuit Breaker

China Ningbo Tianan (Group) Co.,Ltd. certification
China Ningbo Tianan (Group) Co.,Ltd. certification
I'm Online Chat Now

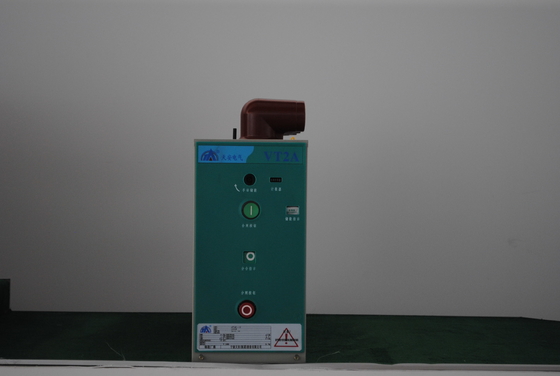

Indoor AC High Voltage Vacuum Circuit Breaker , VS1(ZN63A)-12 Circuit Breaker

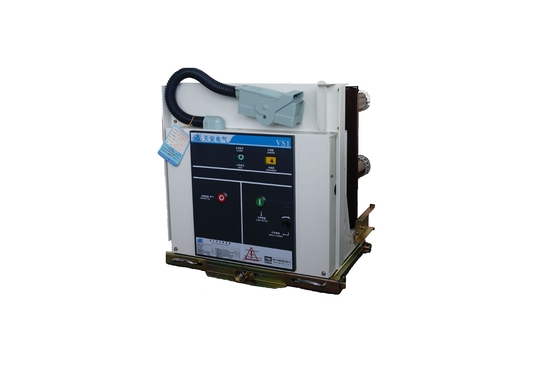

Indoor AC High Voltage Vacuum Circuit Breaker , VS1(ZN63A)-12 Circuit Breaker

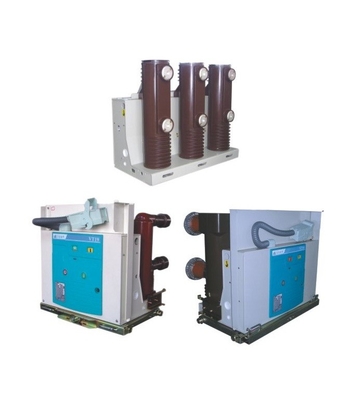

Indoor AC High Voltage Vacuum Circuit Breaker , VS1(ZN63A)-12 Circuit Breaker Indoor AC High Voltage Vacuum Circuit Breaker , VS1(ZN63A)-12 Circuit Breaker Indoor AC High Voltage Vacuum Circuit Breaker , VS1(ZN63A)-12 Circuit Breaker

Large Image :  Indoor AC High Voltage Vacuum Circuit Breaker , VS1(ZN63A)-12 Circuit Breaker

Product Details:
Place of Origin: China
Brand Name: Tianan Electric
Certification: GB1984、GB/T11022、DL/T403 and IEC62271
Model Number: VT19-24
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: Wooden Cases
Delivery Time: 45 work days
Payment Terms: L/C, T/T,
Supply Ability: 2000 PCS/year
Detailed Product Description
Rated Voltage: High Voltage Embedded Poles: APG Process
Rated Current: 630 A,1250A Auxiliary Contacts: High Auxiliary Contacts
Frequency: 50Hz Mechanical Life: 15 Years

VS1(ZN63A)-12 Indoor AC High Voltage Vacuum Circuit Breaker

NINGBO TIANAN (GROUP) CO., LTD.



The structure of vacuum arc-extinguish room

Vacuum arc-extinguish room is the core parts from circuit breaker to support, connect and break current energy. It has sufficient arc-extinguish function and high operation duration.

  • Insulation enclosure (1) of arc-extinguish room is made up of high intensity alumina ceramics material, both ends shall be welded stainless steel cover (6) and it will be formed into sealed cavity.
  • Inner layer of arc-extinguish room is metal shied cover(5) which metal moist caused by arc can be compounded or condensed on the metal shied cover in short time during terminal making & breaking, insulation media intensity of inner arc-extinguish room will be recover. Meantime, shied cover can protect ceramics enclosure from hurt of metal splashing.
  • Retracted stainless steel accordion pipe (4) is the important part of arc-extinguish room that moving terminal (3) can move in the fully-closed arc-extinguish room. Sealing function and long duration of accordion pipe is one of the main factors which decided the mechanical duration of vacuum arc-extinguish room.
  • Terminal is the heart of vacuum arc-extinguish room, adopt chromium-copper, advanced smelt technology can ensure the breaking function and electric duration of vacuum circuit breaker, and decrease the operation over-voltage level.



The main parameter of 24KV circuit breaker



Rated voltage 24kV
Rated frequency 50Hz
Rated lighting impulse withstand voltage 125kV
Rated 1 min power frequency withstand voltage 65kV
Rated operation sequence O-0.3s-CO-180s-CO
Rated current (A) 630,1250 1250,1600,2000,2500
Rated short circuit breaking current (r.m.s, kA) 20/25 31.5
Rated short circuit making current (peak value, kA) 50/63 80
Rated short time withstand current/short circuit continuous time (kA/s) 20,25/4 31.5/4
Rated peak value withstand current (kA) 50/63 80
Breaking times of rated short circuit(times) 30
Mechanical duration (times) 20000
Weight (kg) Fixed type ≤250
Truck type ≤350
Name Unit Data
Distance of contact terminal mm 12±1
Over-travel 4±1
Three-phase opening & closing asynchronous ms ≤2
Tripping time of closing contact terminal ms ≤2
Closing & opening time Opening ms ≤50
Closing ≤70
Average opening speed(after opening 6mm) m/s 1.4±0.3
Average closing speed(after closing 6mm) 0.8±0.2



Overview

The circuit breaker is identified by some national standards and international relative standards, such as GB1984,GB/T11022,DL/T403 and IEC62271, etc. It has reliable lockage, used as truck department or fixed installation department.

VT19-24indoor HV vacuum circuit breaker is used in the mining company ,power factory and substation,which is widely used in the rated current or multiple breaking short circuit current.
