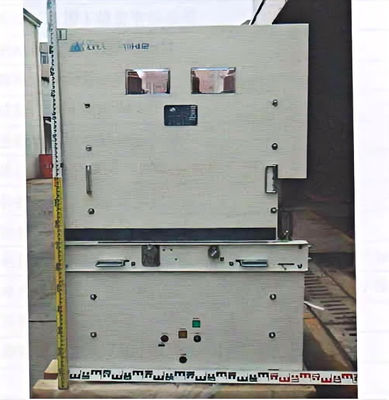

1.6±0.2 M/s Average Opening Speed High Voltage Circuit Breaker with 6±1 Mm Overtravel O-0.3s-CO-180s-CO

Product Description:

The High Voltage Circuit Breaker is a crucial component in electrical systems, designed to protect circuits from overloads and short circuits at high voltage levels. This particular product is a High Voltage Vacuum Circuit Breaker, known for its reliability and efficiency in interrupting high voltage currents.

One of the key features of this High Voltage Circuit Breaker is its ability to withstand seismic activities. With an Earthquake intensity rating of less than Grade 8, this breaker ensures stability and operational safety even in regions prone to earthquakes.

Operating at a rated frequency of 50 Hz, this High Voltage Circuit Breaker is suitable for applications where a consistent power supply is essential. The rated lighting impulse withstand voltage of 185 KV makes it robust against sudden voltage surges caused by lightning strikes, providing further protection to the connected electrical systems.

When it comes to precision in operation, the Overtravel feature of this High Voltage Circuit Breaker is set at 6±1 Mm, allowing for accurate and controlled breaking of circuits when needed. This level of overtravel ensures that the breaker functions optimally, minimizing the risk of damage to the electrical components.

Moreover, the Altitude limit of ≤2000 M ensures that this High Voltage Circuit Breaker can be deployed in a wide range of environments, including high-altitude locations where consistent performance is essential.

Overall, this High Voltage Circuit Breaker is a reliable and efficient solution for high voltage circuit protection. With its advanced features and robust design, it offers peace of mind to users by ensuring the safe and uninterrupted operation of electrical systems even under challenging conditions.

Features:

• Product Name: High Voltage Circuit Breaker
• Average closing speed: 0.7±0.2 M/s
• Rated lighting impulse withstand voltage: 185 KV
• Environment temperature: -15℃~+40℃
• Overtravel: 6±1 Mm
• Clearance between open contacts: 18±1 Mm

Technical Parameters:

Applications:

The 12KV Vacuum Circuit Breaker by TIANAN is suitable for a variety of applications in different scenarios due to its advanced features and reliable performance:

• Power Plants: The High Voltage Circuit Breaker is ideal for use in power plants to protect electrical equipment from overloads and short circuits.
• Industrial Facilities: In industrial settings, the 12KV Vacuum Circuit Breaker can ensure the safe operation of machinery and prevent damage from electrical faults.
• Commercial Buildings: The High Voltage Circuit Breaker is well-suited for use in commercial buildings to maintain a stable electrical supply and protect sensitive equipment.
• Utilities: Utility companies can rely on the 12KV Vacuum Circuit Breaker for efficient switching and protection of high voltage circuits.
• Renewable Energy Projects: The High Voltage Circuit Breaker is essential for renewable energy projects to ensure smooth operation and grid stability.

Originating from CHINA and certified by GB , this circuit breaker offers reliable performance and safety. The TIANAN VT19-40.5EP is designed to withstand seismic activity of less than Grade 8, making it suitable for a wide range of environments.

With a minimum order quantity of 5 SETS and packaging details in WOODEN PALLET , the High Voltage Circuit Breaker offers flexibility in procurement and shipping. The delivery time and price can be determined based on specific requirements.

Key technical specifications include a bounce time of closing contact of ≤3 Ms, average closing speed of 0.7±0.2 M/s, and average opening speed of 1.6±0.2 M/s. The rated operation sequence of O-0.3s-CO-180s-CO ensures efficient and reliable performance in various applications.

For applications requiring a dependable and high-performance 12KV Vacuum Circuit Breaker , the TIANAN VT19-40.5EP is a top choice offering quality, durability, and safety.

Customization:

Product Customization Services for the High Voltage Circuit Breaker:

Brand Name: TIANAN

Model Number: VT19-40.5EP

Place of Origin: CHINA

Certification: GB

Minimum Order Quantity: 5 SETS

Price: To be pending

Packaging Details: WOODEN PALLET

Delivery Time: According to the fact

Payment Terms: To be pending

Environment temperature: -15℃~+40℃

Altitude: ≤2000 M

Rated volatge: 40.5 KV

Overtravel: 6±1 Mm

Rated lighting impulse withstand voltage: 185 KV

Support and Services:

Our Product Technical Support and Services for the High Voltage Circuit Breaker include:

- Expert troubleshooting assistance for any issues encountered with the circuit breaker

- Maintenance services to ensure optimal performance and longevity of the product

- Training programs for users to understand the proper operation and maintenance of the circuit breaker

- Remote diagnostic services to quickly identify and resolve technical issues

- Access to a team of knowledgeable technicians for any product-related inquiries

Packing and Shipping:

Product Packaging:

The High Voltage Circuit Breaker is carefully packaged to ensure its safety during transit. It is enclosed in a sturdy cardboard box with ample padding to prevent any damage. The packaging is designed to withstand the rigors of shipping and handling, ensuring that the product reaches you in perfect condition.

Shipping:

Orders for the High Voltage Circuit Breaker are shipped using a reliable and trusted courier service. The product is usually dispatched within 1-2 business days after the order is placed. You will receive a tracking number to monitor the status of your shipment. We strive to deliver your order in a timely manner, ensuring that you receive your High Voltage Circuit Breaker promptly and securely.

FAQ:

Q: What is the brand name of the High Voltage Circuit Breaker?

A: The brand name is TIANAN.

Q: What is the model number of the High Voltage Circuit Breaker?

A: The model number is VT19-40.5EP.

Q: Where is the High Voltage Circuit Breaker manufactured?

A: It is manufactured in China.

Q: What certification does the High Voltage Circuit Breaker have?

A: The certification is GB.

Q: What is the minimum order quantity for the High Voltage Circuit Breaker?

A: The minimum order quantity is 5 sets.
