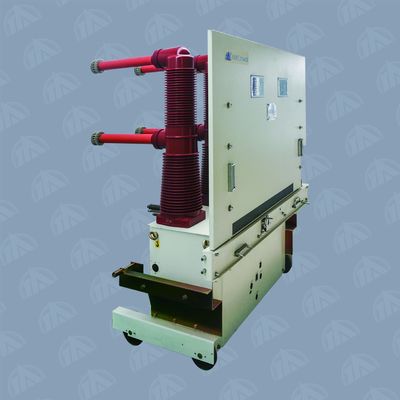

50 Hz Frequency Protection High Voltage Circuit Breaker with 6±1 Mm Overtravel

Product Description:

The High Voltage Circuit Breaker is an essential component in high voltage power systems, designed to protect electrical circuits from overloads and short circuits. This particular model is a High Voltage Vacuum Circuit Breaker, specifically engineered for high voltage applications up to 12KV. With its advanced features and durable construction, this circuit breaker ensures reliable and safe operation in demanding electrical environments.

Key Product Attributes:

• Overtravel: 6±1 Mm
• Rated Lighting Impulse Withstand Voltage: 185 KV
• Average Opening Speed: 1.6±0.2 M/s
• Earthquake Intensity: ＜Grade 8
• Rated Operation Sequence: O-0.3s-CO-180s-CO

The High Voltage Circuit Breaker features an overtravel distance of 6±1 Mm, providing precise and reliable circuit interruption capabilities. With a rated lighting impulse withstand voltage of 185 KV, this circuit breaker offers superior protection against voltage surges caused by lightning strikes or other electrical disturbances. The average opening speed of 1.6±0.2 M/s ensures quick and efficient circuit interruption when needed, minimizing downtime and potential damage to electrical equipment.

In addition, this High Voltage Circuit Breaker is designed to withstand earthquake intensities of less than Grade 8, making it suitable for installation in seismic-prone regions. Its robust construction and reliable performance make it an ideal choice for ensuring the safety and stability of high voltage power systems.

The rated operation sequence of O-0.3s-CO-180s-CO signifies the operating cycle of the circuit breaker, with specific timings for opening and closing operations. This sequence ensures proper coordination and functionality of the circuit breaker in various operating conditions, providing optimal circuit protection and reliability.

Overall, the High Voltage Circuit Breaker is a critical component for maintaining the integrity and safety of high voltage electrical systems. Its advanced features, including precise overtravel, high withstand voltage, fast opening speed, earthquake resistance, and defined operation sequence, make it a top choice for applications requiring reliable circuit protection and performance.

Features:

• Product Name: High Voltage Circuit Breaker
• Bounce time of closing contact: ≤3 Ms
• Average opending speed: 1.6±0.2 M/s
• Rated volatge: 40.5 KV
• Rated frequency: 50 Hz
• Average closing speed: 0.7±0.2 M/s

Technical Parameters:

Applications:

These 12KV Vacuum Circuit Breakers are suitable for use in a range of industries and settings. Here are some of the key application occasions and scenarios where the TIANAN VT19-40.5EP High Voltage Circuit Breaker can be used:

• Power Plants: The circuit breaker is ideal for use in power plants to protect electrical equipment and ensure the smooth operation of power generation systems.
• Industrial Facilities: With its high voltage capabilities, this circuit breaker is well-suited for use in industrial facilities to handle large electrical loads and provide effective protection.
• Utilities: Utility companies can rely on this High Voltage Vacuum Circuit Breaker to maintain the reliability of their electrical distribution networks and prevent outages.
• Renewable Energy: The TIANAN VT19-40.5EP is a great choice for use in renewable energy projects such as wind farms and solar power plants to ensure safe and efficient operation.
• Commercial Buildings: This circuit breaker can be used in commercial buildings to protect critical electrical systems and equipment, ensuring uninterrupted power supply.

The TIANAN VT19-40.5EP High Voltage Circuit Breaker comes with a minimum order quantity of 5 sets and is packaged in wooden pallets for secure transportation. The delivery time is according to the fact, and payment terms are pending. The average closing speed is 0.7±0.2 M/s, with a bounce time of closing contact of ≤3 Ms. The rated frequency is 50 Hz, and the average opening speed is 1.6±0.2 M/s. The overtravel distance is 6±1 mm, making it a versatile and durable solution for high voltage circuit protection.

Customization:

Product Customization Services for the High Voltage Circuit Breaker:

Brand Name: TIANAN

Model Number: VT19-40.5EP

Place of Origin: CHINA

Certification: GB

Minimum Order Quantity: 5 SETS

Price: To be pending

Packaging Details: WOODEN PALLET

Delivery Time: According to the fact

Payment Terms: To be pending

Clearance between open contacts: 18±1 Mm

Average closing speed: 0.7±0.2 M/s

Average opending speed: 1.6±0.2 M/s

Overtravel: 6±1 Mm

Earthquake intensity: ＜Grade 8

Support and Services:

Our Product Technical Support and Services for the High Voltage Circuit Breaker include:

- Installation guidance and support

- Troubleshooting assistance

- Regular maintenance services

- Repair and replacement of faulty components

- Technical training for users and maintenance personnel

- Remote monitoring and diagnostics

Packing and Shipping:

This High Voltage Circuit Breaker is carefully packaged to ensure its safe delivery to you. The product is wrapped in protective foam and placed in a sturdy cardboard box to prevent any damage during transit.

For shipping, we use trusted carriers to deliver your order securely and efficiently. You can track your package using the provided tracking number to know the status of your delivery.
