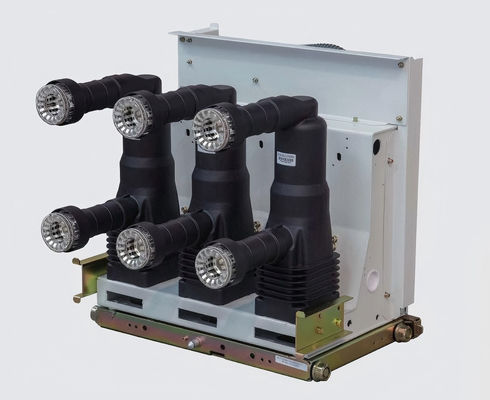

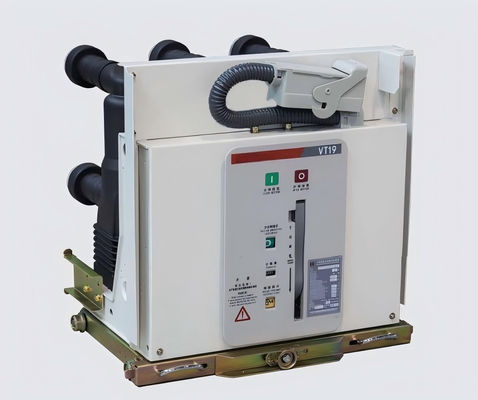

75/125 KV High Voltage Circuit Breaker with 12 KV/0.9-1.3 Average Opening Speed and -15C- 40C Environment Temperature Range

Product Description:

The High Voltage Vacuum Circuit Breaker is an essential component in electrical systems, designed to provide reliable protection against overcurrents and short circuits in high voltage applications. This advanced circuit breaker offers superior performance and efficiency, making it a top choice for industrial and commercial settings.

One of the key features of the High Voltage Vacuum Circuit Breaker is its impressive average opening speed. With a speed of 12 kV/0.9~1.3 M/s for 12kV and 24kV/1.1~1.6 M/s for 24kV, this circuit breaker ensures quick and efficient interruption of current flow when needed, helping to prevent damage to equipment and ensure the safety of the electrical system.

Operating at a rated frequency of 50 Hz, the High Voltage Vacuum Circuit Breaker is suitable for use in a wide range of electrical systems and applications. It can reliably handle electrical loads while maintaining stable performance, making it a versatile and dependable choice for high voltage protection.

The High Voltage Vacuum Circuit Breaker is designed to operate effectively in a variety of environmental conditions. With an environment temperature range of -15℃ to +40℃, this circuit breaker can withstand extreme temperatures and harsh environments without compromising its performance or reliability. Whether installed indoors or outdoors, this circuit breaker will deliver consistent protection and performance.

When it comes to response time, the High Voltage Vacuum Circuit Breaker excels with its quick opening time of 15~45 ms. This rapid response ensures that overcurrents and short circuits are promptly interrupted, helping to minimize damage and downtime in the electrical system. With its precise and efficient operation, this circuit breaker provides effective protection against electrical faults.

The High Voltage Vacuum Circuit Breaker follows a rated operation sequence of O-0.3s-CO-180s-CO, indicating its ability to operate reliably and consistently in various conditions. This sequence ensures that the circuit breaker functions properly during both normal and fault conditions, providing continuous protection and helping to maintain the integrity of the electrical system.

In conclusion, the High Voltage Vacuum Circuit Breaker is a high-performance and reliable solution for high voltage protection in industrial and commercial applications. With its impressive opening speed, rated frequency, temperature tolerance, response time, and operation sequence, this circuit breaker offers exceptional functionality and durability. Trust the High Voltage Vacuum Circuit Breaker to safeguard your electrical system and provide peace of mind in critical situations.

Features:

• Product Name: High Voltage Circuit Breaker
• Environment temperature: -15℃~+40℃
• Opening time: 15~45 Ms
• Rated lighting impulse withstand voltage: 75/125 KV
• Rated frequency: 50 Hz
• Altitude: ≤1000 M

Technical Parameters:

Applications:

The Product Application Occasions and Scenarios for the VT19-12/24 High Voltage Vacuum Circuit Breaker are diverse and essential in various industries. This circuit breaker is suitable for use in power plants, substations, industrial facilities, and commercial buildings where high voltage protection is required.

With an average opening speed of 12 KV/0.9~1.3 M/s and 24 KV/1.1~1.6 M/s, the VT19-12/24 circuit breaker ensures timely and effective operation in critical situations. Its opening time ranges from 15 to 45 Ms, providing quick response to overcurrent or short circuit events.

In terms of environmental adaptability, the VT19-12/24 circuit breaker can function reliably in temperatures ranging from -15℃ to +40℃. This makes it suitable for installations in various climatic conditions.

The minimum order quantity for the VT19-12/24 High Voltage Vacuum Circuit Breaker is 5 sets, and the packaging details include wooden pallets for secure transportation. The delivery time is flexible and dependent on specific requirements, while payment terms are subject to negotiation.

Overall, the TIANAN VT19-12/24 High Voltage Vacuum Circuit Breaker is a dependable solution for 12KV and 24KV applications, offering efficient performance, quick response times, and robust construction for critical power systems.

Customization:

Product Customization Services for High Voltage Circuit Breaker:

Brand Name: TIANAN

Model Number: VT19-12/24

Place of Origin: CHINA

Certification: GB

Minimum Order Quantity: 5 SETS

Price: To be pending

Packaging Details: WOODEN PALLET

Delivery Time: According to the fact

Payment Terms: To be pending

Altitude: ≤1000 M

Rated lighting impulse withstand voltage: 75/125 KV

Rated operation sequence: O-0.3s-CO-180s-CO

Earthquake intensity: ＜Grade 8

Overtravel: 3.5±0.5 Mm

Support and Services:

The Product Technical Support and Services for the High Voltage Circuit Breaker product include:

- On-site installation and commissioning

- Regular maintenance and servicing

- Troubleshooting and diagnosis of issues

- Remote technical support

- Training for operators and maintenance staff

- Upgrades and retrofit solutions
