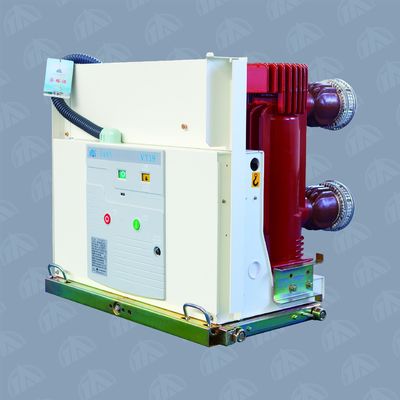

12/24 KV High Voltage Circuit Breaker with 75/125 KV Rated Lighting Impulse Withstand Voltage

Product Description:

One of the key features of the High Voltage Circuit Breaker is its ability to operate effectively at altitudes of up to 1000 meters. This makes it a versatile solution for installations in a wide range of environments, ensuring consistent performance even in elevated locations.

When it comes to safety and reliability, the High Voltage Vacuum Circuit Breaker is designed to withstand earthquakes of intensity less than Grade 8. This ensures that the circuit breaker can continue to function effectively even in challenging conditions, providing an added layer of protection for critical electrical systems.

The rated operation sequence of the High Voltage Circuit Breaker is O-0.3s-CO-180s-CO, allowing for precise and efficient operation in response to electrical faults. This sequence ensures that the circuit breaker can quickly interrupt the flow of current when needed, helping to prevent damage to equipment and ensuring the safety of personnel in the vicinity.

In addition to its reliable performance and safety features, the High Voltage Circuit Breaker also offers precise control over its operation. With an overtravel distance of 3.5±0.5 mm, this circuit breaker provides accurate and consistent performance, making it an ideal choice for applications where precision is key.

Overall, the High Voltage Circuit Breaker is a high-quality product that combines advanced technology with robust design to deliver outstanding performance in high voltage applications. Whether you need reliable protection for industrial equipment, power distribution systems, or other critical installations, this circuit breaker is a dependable solution that will help keep your electrical systems running smoothly and safely.

Features:

• Product Name: High Voltage Circuit Breaker
• Environment temperature: -15℃~+40℃
• Rated voltage: 12/24 KV
• Altitude: ≤1000 M
• Earthquake intensity: ＜Grade 8
• Average opening speed: 12 KV/0.9~1.3 M/s ; 24 KV/1.1~1.6 M/s

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the TIANAN High Voltage Vacuum Circuit Breaker VT19-12/24 :

Brand Name: TIANAN

Model Number: VT19-12/24

Place of Origin: CHINA

Certification: GB

Minimum Order Quantity: 5 SETS

Price: To be pending

Packaging Details: WOODEN PALLET

Delivery Time: According to the fact

Payment Terms: To be pending

Altitude: ≤1000 M

Rated frequency: 50 Hz

Closing time: 30~70 Ms

Environment temperature: -15℃~+40℃

Overtravel: 3.5±0.5 Mm

The TIANAN High Voltage Vacuum Circuit Breaker VT19-12/24 is suitable for various applications and scenarios where high voltage circuit protection is required. Some key occasions and scenarios include:

1. Power Substations: The high voltage vacuum circuit breaker can be used in power substations to protect electrical systems from overloads and short circuits, ensuring uninterrupted power supply.

2. Industrial Plants: It is ideal for use in industrial plants where high voltage equipment needs reliable circuit protection to prevent damage and downtime.

3. Renewable Energy Installations: The circuit breaker can be deployed in renewable energy installations such as wind farms and solar power plants to safeguard the electrical infrastructure.

4. Commercial Buildings: It is suitable for commercial buildings, providing essential protection for electrical systems to maintain operational efficiency.

5. Mining Operations: The high voltage circuit breaker can be applied in mining operations to ensure safety and reliability of electrical systems in challenging environments.

Overall, the TIANAN High Voltage Vacuum Circuit Breaker VT19-12/24 offers a versatile solution for a wide range of high voltage applications, delivering reliable performance and protection in diverse scenarios.

Customization:

Product Customization Services for the High Voltage Circuit Breaker:

Brand Name: TIANAN

Model Number: VT19-12/24

Place of Origin: CHINA

Certification: GB

Minimum Order Quantity: 5 SETS

Price: To be pending

Packaging Details: WOODEN PALLET

Delivery Time: According to the fact

Payment Terms: To be pending

Average closing speed: 12 KV/0.4~0.8 ; 24kV/0.6~1.0 M/s

Closing time: 30~70 Ms

Rated voltage: 12/24 KV

Rated operation sequence: O-0.3s-CO-180s-CO

Opening time: 15~45 Ms

Support and Services:

Our Product Technical Support and Services for the High Voltage Circuit Breaker include:

- Installation guidance and support

- Troubleshooting assistance

- Maintenance recommendations

- Software updates and upgrades

- Training programs for operators and maintenance personnel

- Remote monitoring and diagnostics services

- On-site repair and replacement services

We are committed to providing comprehensive support and services to ensure the optimal performance and reliability of your High Voltage Circuit Breaker.
