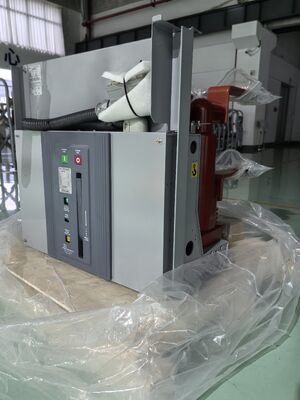

DC 125V Closing and Opening Operating Voltage High Voltage Vacuum Circuit Breaker with Closing Speed 0.766 M per Second Offering Circuit Protection

Product Description:

The High Voltage Vacuum Circuit Breaker is an essential component in modern electrical power systems, designed to ensure the safe and reliable interruption of high voltage electrical currents. This High Voltage Circuit Breaker is engineered with precision to meet rigorous performance standards, making it an ideal choice for industrial, commercial, and utility applications where high voltage switching and protection are critical.

One of the standout features of this High Voltage Vacuum Circuit Breaker is its operating voltage for both closing and opening, which is rated at DC 125V. This specification ensures that the breaker can operate efficiently and reliably under demanding electrical conditions. The ability to function at this voltage level highlights the circuit breaker’s robustness and suitability for high voltage environments.

The operational speed of the High Voltage Circuit Breaker is a critical factor in minimizing damage to electrical equipment and maintaining system stability. This breaker offers a rapid closing time of 35.225 milliseconds, allowing it to quickly establish electrical connection and engage the circuit without delay. Equally important is its opening time, which is 22.2 milliseconds. This swift response in breaking the circuit helps in effectively isolating faults and preventing potential hazards such as electrical arcs and equipment damage.

With a rated current capacity of 125 amperes, the High Voltage Vacuum Circuit Breaker is capable of handling substantial electrical loads. This current rating makes it suitable for various high voltage applications where consistent and reliable current interruption is necessary. The breaker’s design ensures that it can sustain its rated current without overheating or deteriorating, thus providing long-term operational stability and safety.

The physical design of this High Voltage Circuit Breaker also contributes to its performance and ease of installation. The center distance between phases is precisely set at 254 millimeters. This spacing facilitates proper insulation and reduces the risk of short circuits between phases, which is crucial for maintaining the integrity of the electrical system. Additionally, the standardized phase spacing allows for compatibility with a wide range of electrical equipment and infrastructure layouts.

Utilizing vacuum technology, this High Voltage Vacuum Circuit Breaker benefits from the superior arc quenching properties inherent to vacuum interrupters. Unlike traditional circuit breakers that use air or oil, vacuum circuit breakers extinguish the arc within a vacuum, significantly reducing the wear on contacts and extending the lifespan of the breaker. This technology also ensures minimal maintenance requirements and enhances overall operational reliability.

In conclusion, the High Voltage Vacuum Circuit Breaker represents a high-performance solution for controlling and protecting high voltage electrical circuits. Its key attributes, including a DC 125V operating voltage, rapid closing and opening times of 35.225 ms and 22.2 ms respectively, a rated current of 125 A, and a phase center distance of 254 mm, collectively ensure efficient, safe, and reliable circuit interruption. This makes it an indispensable device in safeguarding electrical infrastructure and ensuring the continuous delivery of power in various high voltage applications.

Features:

• Product Name: High Voltage Vacuum Circuit Breaker
• Energy Storage Voltage: AC/DC 125V
• Standard Compliance: GB/T 1984
• Opening Speed: 0.982 /s
• Rated Current: 125 A
• Closing and Opening Operating Voltage: DC 125V
• Reliable performance as a High Voltage Vacuum Circuit Breaker
• Designed for durability and safety in high voltage applications
• Efficient and fast operation typical of a High Voltage Vacuum Circuit Breaker

Technical Parameters:

Applications:

The TIANAN VTD6-6/1250-30 High Voltage Circuit Breaker is a reliable and efficient solution designed for various electrical power distribution applications. As a 12KV Vacuum Circuit Breaker, it is widely utilized in medium voltage power systems to ensure safe and stable operation by interrupting fault currents and protecting electrical equipment from damage. Its advanced vacuum interrupter technology makes it ideal for environments requiring high dielectric strength and rapid switching capabilities.

This High Voltage Vacuum Circuit Breaker is particularly suitable for use in industrial plants, substations, and power generation facilities where precise control and protection of high voltage circuits are critical. The VTD6-6/1250-30 model is engineered with a hand car structure type, facilitating easy installation and maintenance. With an energy storage voltage compatible with AC/DC 125V systems, it offers versatility across various electrical configurations.

The breaker’s operational performance is enhanced by its impressive closing speed of 0.766 meters per second and a closing time of just 35.225 milliseconds, ensuring swift and reliable circuit engagement. Additionally, its opening speed of 0.982 meters per second provides rapid disconnection capabilities, minimizing equipment exposure during fault conditions. These performance characteristics make the TIANAN 12KV Vacuum Circuit Breaker an excellent choice for applications demanding both high speed and precision.

Manufactured in China and certified under the GB standard, this product assures compliance with national quality and safety regulations. Orders are available with a minimum quantity of 5 sets, and each unit is securely packaged on wooden pallets to guarantee safe delivery. The delivery time is determined based on actual demand and availability, while payment terms and pricing details are to be pending, allowing for flexible commercial arrangements.

Overall, the TIANAN VTD6-6/1250-30 High Voltage Vacuum Circuit Breaker is designed to provide robust protection and efficient operation in power distribution networks. Its combination of advanced vacuum technology, precise mechanical performance, and reliable construction makes it indispensable for ensuring system stability and operational safety in various high voltage electrical scenarios.

Customization:

The TIANAN High Voltage Vacuum Circuit Breaker, model number VTD6-6/1250-30, is a reliable and efficient 12KV Vacuum Circuit Breaker designed to meet various high voltage applications. Manufactured in CHINA and certified with GB standards, this product ensures quality and safety in operation.

Featuring a hand car structure type, the breaker boasts an opening time of 22.2 ms, with an opening speed of 0.982 m/s and a closing speed of 0.766 m/s, providing rapid response and effective circuit interruption. The energy storage voltage is AC/DC 125V, supporting stable and consistent performance.

With a minimum order quantity of 5 SETS, the 12KV Vacuum Circuit Breaker is packaged securely on a wooden pallet to ensure safe delivery. Delivery time is arranged according to actual circumstances, and pricing as well as payment terms are to be pending based on customer requirements.

This High Voltage Vacuum Circuit Breaker is ideal for customers seeking dependable and certified 12KV Vacuum Circuit Breaker solutions with customizable options to fit specific project needs.

Support and Services:

Our High Voltage Circuit Breaker product is supported by a dedicated technical support team committed to ensuring optimal performance and reliability. We offer comprehensive services including installation guidance, routine maintenance, troubleshooting, and repair solutions tailored to meet your operational needs.

Technical support is available to assist with product selection, application advice, and system integration to help you achieve maximum efficiency and safety. Our experts provide detailed documentation, training sessions, and on-site support to empower your team with the knowledge required for proper operation and upkeep.

We also provide timely software updates and firmware upgrades to enhance functionality and address any emerging issues. Our service plans include preventive maintenance schedules and emergency response options to minimize downtime and extend the lifespan of your high voltage circuit breakers.

By choosing our High Voltage Circuit Breaker product, you gain access to a network of skilled professionals dedicated to delivering prompt, reliable, and effective technical support and services throughout the product lifecycle.
