| Rated Voltage: | 12 Kv | Altitude: | Up To 3, 000m Above Sea Level |
|---|---|---|---|
| Environment: | Indoor | Rated Current: | 630 A |
| High Light: | high voltage load switch,vacuum load break switch |
||

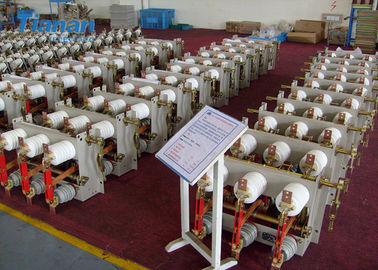

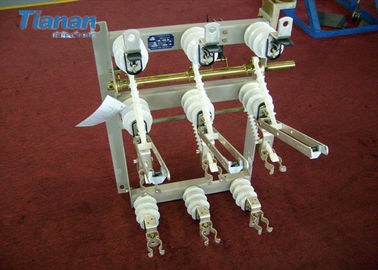

12 Kv outdoor Load Switch / High Voltage Disconnect Switch For Electric Power System
AC High Voltage outdoor Load Switch
NINGBO TIANAN (GROUP) CO., LTD.
Main Characteristics
Rated voltage from 72,5 to 550kV
Reliable in adverse operating conditions such as high winds and heavy ice
Always stable in the close position during short circuits
Rigid and well supported terminal pads permit post insulators and additional space savings
Galvanized structural steel channel base assures high strength and rigid design
Supplied or easily retro-fitted with 1 or 2 earthing switches
Customised solutions available: vertical, underhung and phase-to-phase
Specifications
1. Can used in three-phase AC 50Hz ,24kV electric power system ,
2. Can used in the equipment of mining and
industry ,enterprise, power plants and substations for protect and control .
3. Can used in KYN28A-24(GZS) switchgear
cabinet and XGN fixed type switchgear cabinet.
4. Has Advanced vacuum arcing chamber.
5.insulation cylinder made by APG new technology
6.Confirmed to GB1984-2003, GB/T11022-1999 ,IEC62271-100 , DL/403
Using environment
1. The temperature in surrounding air: Max:+40°C~Min -15°C,The average:<=+35°C
2. Humidity: The average of relative temperature within 24hours is <=95%, The average of Water
vapour pressure within 24hours is <=2.2kpa.
3. Here is no serious pollution from dust, smoke,corrosive or combustible gas,
vapor or salt spray, and so on.
General
FN12 Series AC HV Load Switch is a kind of three phase high voltage switch apparatus, suitable for
12kV rated voltage, 50Hz rated frequency alternative current, It is mainly used in downtown power distribution station and industrial electric equipment of three phase ring main unit electricity circle or terminal power supply, for breaking and closing short circuit current.
Service Condition
1. The altitude does not exceed 1000m.
2. The ambient air temperature: Highest:+40oC, the lowest:-10oC
3. The relatire Humidity of air not bigger 90% (around the 25oC envirenment)
4. The working situation have no conductivity dust.
5. The working situation have no corrosive gas of affect insulation and destroy metal.
6. The working situation without violent vibration and striking.
7. The working situation have no explosive danger and fire.
Technical parameter
| No. | Item | unit | Parameter |
| 1 | Rated Voltage | kV | 12 |
| 2 | Max. Working Voltage | kV | 12 |
| 3 | Rated Frequency | Hz | 50 |
| 4 | Rated Current | A | 100 |
| 5 | Rated Short-circuit Switch-off Current | kA | 50 |
| 6 | 1min Power Frequency Withstand voltage(value), to ground, interphase/isolation break | kA | 42/48 |
| 7 | Lighting Impluse Resisting Voltage (peak) to ground, interphase/isolation break | kV | 75/85 |
| 8 | Fuse Link Striking Output Energy | Kg | ≈5 |
| Technical Parameter of load switch with fuse | |||
| No. | Item | Unit | Parameter |
| 1 | Rated Voltage | kV | 12 |
| 2 | Max. Working Voltage | kV | 12 |
| 3 | Rated Frequency | Hz | 50 |
| 4 | Rated Current | A | 630 |
| 5 | Rated Power load switch-off current | A | 630 |
| 6 | 5% rated power load switch-off current | A | 31.5 |
| 7 | Rated capacity switch-off current | A | 10 |
| 8 | Rated inductance switch-off current | A | 40 |
| 9 | Rated transfer current | kA | 1.3 |
| 10 | Rated short-time withstand current | kA | 20 |
| 11 | Rated peak withstand current | kA | 50 |
| 12 | Mechanical endurance | cycle | 2000 |
